Series 1200

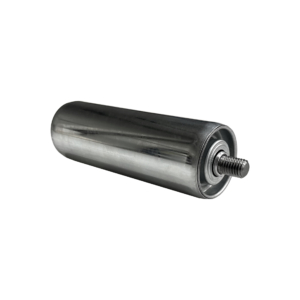

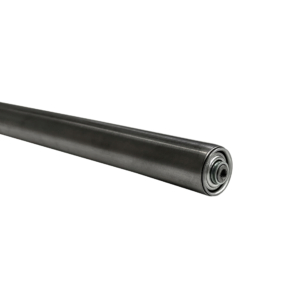

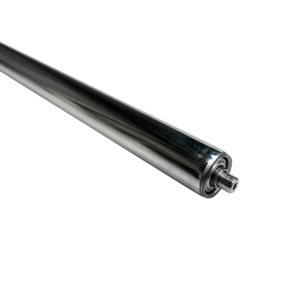

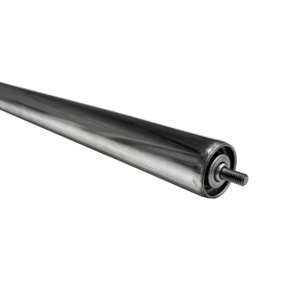

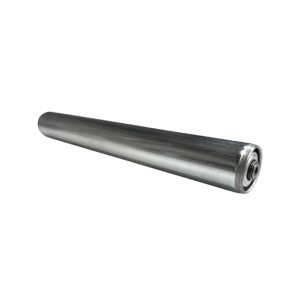

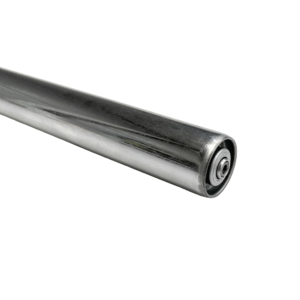

CONVEYOR ROLLER SERIES 1200

Series 1200: Type 1200 rollers have metal bearings, which makes them more resistant to high and low temperatures. Easy to run rollers, suitable for conveying small and medium weight products and also suitable for belt support.

.

Name Bearing material Tube material Tube diameter-wall thickness (D=) mm Tube length (L=) mm Shaft material Shaft (d=) mm
SERIES 1200 D000 L0000 d00 S00 Steel Steel 30x1,50 (45-800) Steel 8, 10
Steel Steel 40x1,50 (45-1000) Steel 8, 10
Steel Steel 50x1,50 (45-1500) Steel 8, 10, 12, SW11, 14, 15
Steel Steel 60x1,50 (45-1500) Steel 8, 10, 12, SW11, 14, 15
Steel Steel 80x2,00 (45-2500) Steel 8, 10, 12, SW11, 14, 15
