Series 3500 light

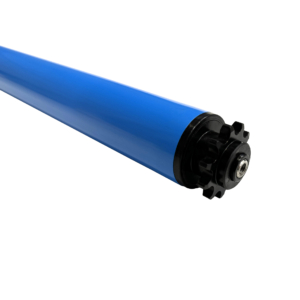

CONVEYOR ROLLER SERIES 3500 Light

Series 3500 Light: The 3500 light series is the basis for driven roller tracks, recommended for conveying medium-weight products and cardboard boxes. There are several types of drive options that have a plastic fold.

.

Fixed driven roller
Name	Sprocket material	Bearing material	Tube material	Tube diameter-wall thickness (D=) mm	Tube length (L=) mm	Shaft material	Shaft (d=) mm
SERIES 3500 D000 L0000 d00 S00 L	POM	POM + Steel	Steel	50x1,50	(100-1500)	Steel	8, 10, 12
	POM	POM + Steel	PVC	50x2,80	(100-500)	Steel	8, 10, 12
	POM	POM + Steel	Steel	60x1,50	(100-500)	Steel	8, 10, 12
	POM	POM + Steel	Steel	50x1,50	(100-1500)	Steel	8, 10, 12
	POM	POM + Steel	PVC	50x2,80	(100-500)	Steel	8, 10, 12
	POM	POM + Steel	Steel	60x1,50	(100-1500)	Steel	8, 10, 12
	POM	POM + Steel	Steel	50x1,50	(100-1500)	Steel	8, 10, 12
	POM	POM + Steel	PVC	50x2,80	(100-500)	Steel	8, 10, 12
	POM	POM + Steel	Steel	60x1,50	(100-1500)	Steel	8, 10, 12
	POM	POM + Steel	Steel	50x1,50	(100-1500)	Steel	8, 10, 12
	POM	POM + Steel	PVC	50x2,80	(100-500)	Steel	8, 10, 12
	POM	POM + Steel	Steel	60x1,50	(100-1500)	Steel	8, 10, 12
	POM	POM + Steel	Steel	50x1,50	(100-1500)	Steel	8, 10, 12
	POM	POM + Steel	PVC	50x2,80	(100-500)	Steel	8, 10, 12
	POM	POM + Steel	Steel	60x1,50	(100-1500)	Steel	8, 10, 12
